Gatehouse SatCom dama-terminals-dama-controller

UHF SatCom controller

GateHouse provides a mobile UHF Satcom controller which can be used in conjunction with US allied defence operations. We are based in Europe and our controller is compliant with DAMA (Demand Assigned Multiple Access) MIL-STDs and provide interoperability with existing terminals.

Mission flexibility

Enable operators to communicate with any other land, sea or airborne terminals for ultimate mission flexibility.

Mobile equipment

To add even more to the flexibility of this tactical satcom solution, it is mobile and can thus be transported to a new location.



Comply with MIL-STDs

All products have been designed and tested to comply with MIL-STD specifications.

Technical specs

DAMA is a channel assignment technology, Demand Assigned Multiple Access, used in Satellite communication. ​ It has been adapted and specified in MIL-STDs to be used for tactical communication.

DAMA has the added advantage that it functions on any GEO satellite offering capacity using bent pipe, thus requires no special security or coordination hardware on the satellite.

The allocated bandwidth is divided into channels and the DAMA controller assigns channels from this available pool of channels​, when services are requested by terminals.

The services provided are: Speech, Messaging, Data, VoIP, Unicast, Multicast, and Broadcast.

Standards supported:

  • MIL-STD-188-181C
  • MIL-STD-188-182B
  • MIL-STD-188-183B
  • MIL-STD-188-185

System overview

The system is used by military organizations and consists of one controller and a number of terminals. GateHouse SatCom offers a controller as a boxed solution and individual software components like MAC and Control Layer.

The communication system uses UHF band capacity on a geosynchronous satellite where mobile terminals communicate managed by a controller also connected via Demand Assigned Multiple Access (DAMA) based scheme.

The controller manages allocated channels controlling individual access from terminals. Both communication between the controller and one or more terminals, and inter-terminal communication is possible. Inter-terminal communication can be provided either directly or by loop-back through the controller.

The GateHouse DAMA controller guarantees interoperability with existing DAMA Satcom terminals. It provides a user-friendly interface for configuring the system including channels allocated for the system.

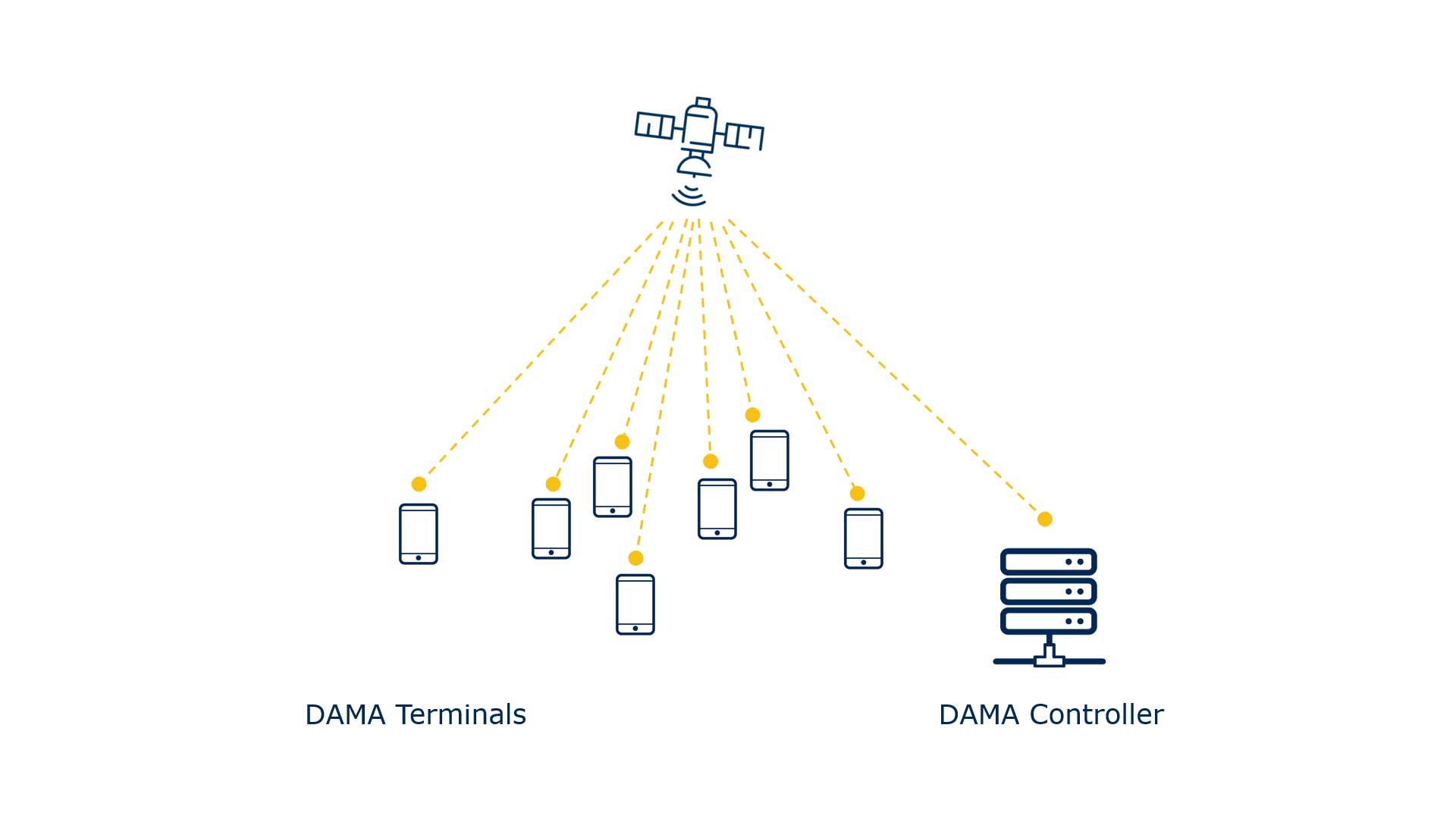

communication-via-dama

Cost-efficient solution from independent supplier

GateHouse is an independent supplier of satcom software with more than 20 years of experience in the satcom business. Working with us, you are guaranteed a cost-efficient solution that can be applied to specific needs and standards.

soldiers in a plane

Flexible boxed solution

The Hub solution from GateHouse SatCom is a boxed solution, which increases its flexibility.
